Monarch 10EE Round Dial Metric Change Gear Kit

$1,495.00

THE Change Gear Kit for Monarch 10EE Round Dial lathe to easily cut Metric threads!

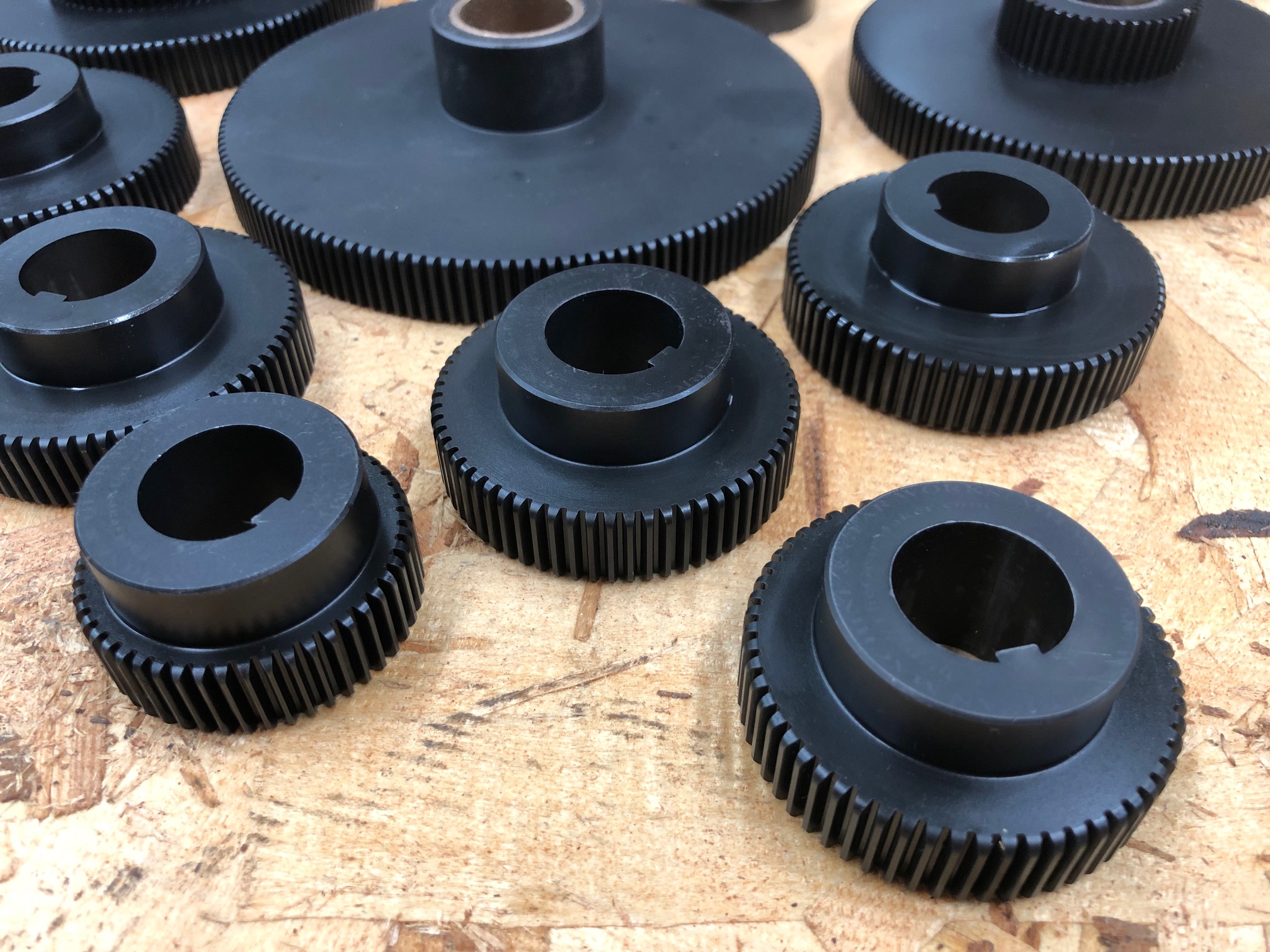

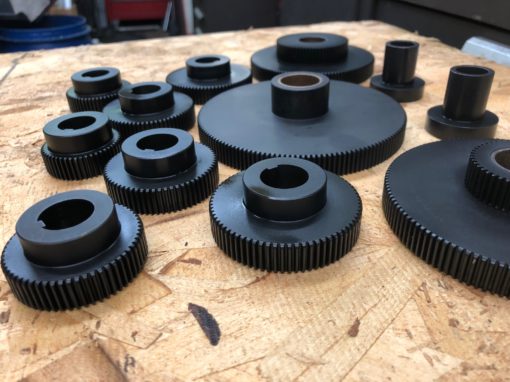

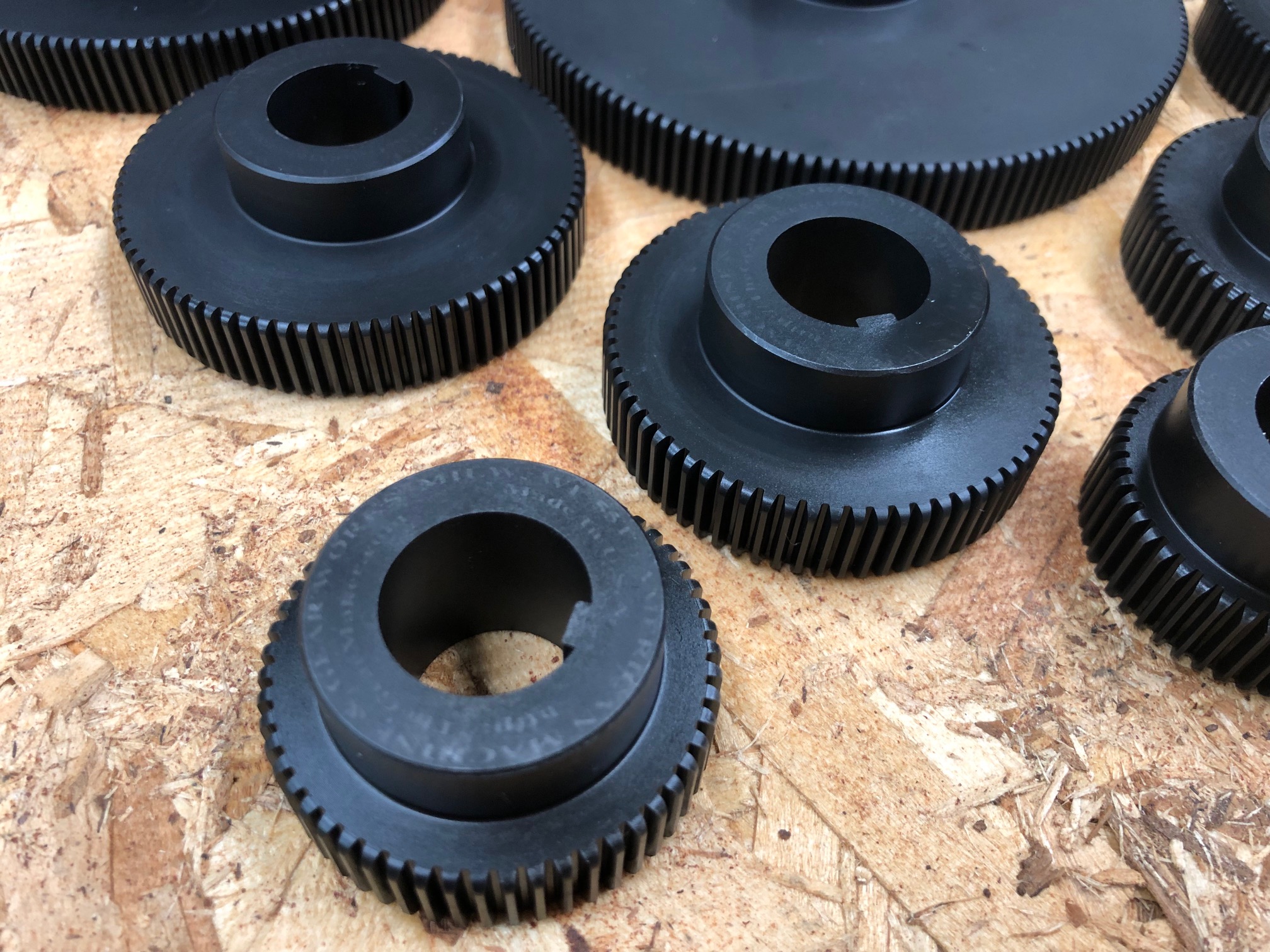

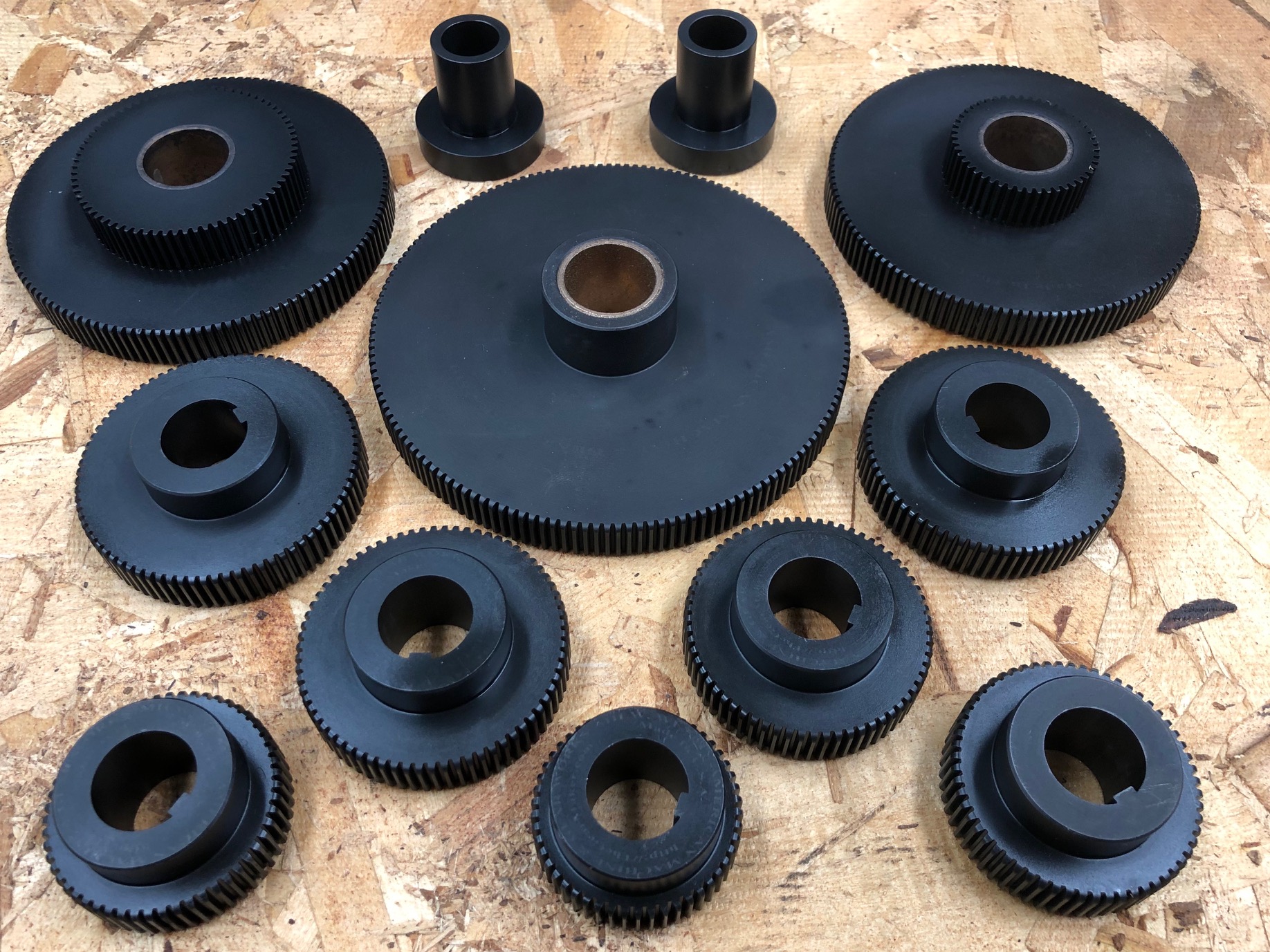

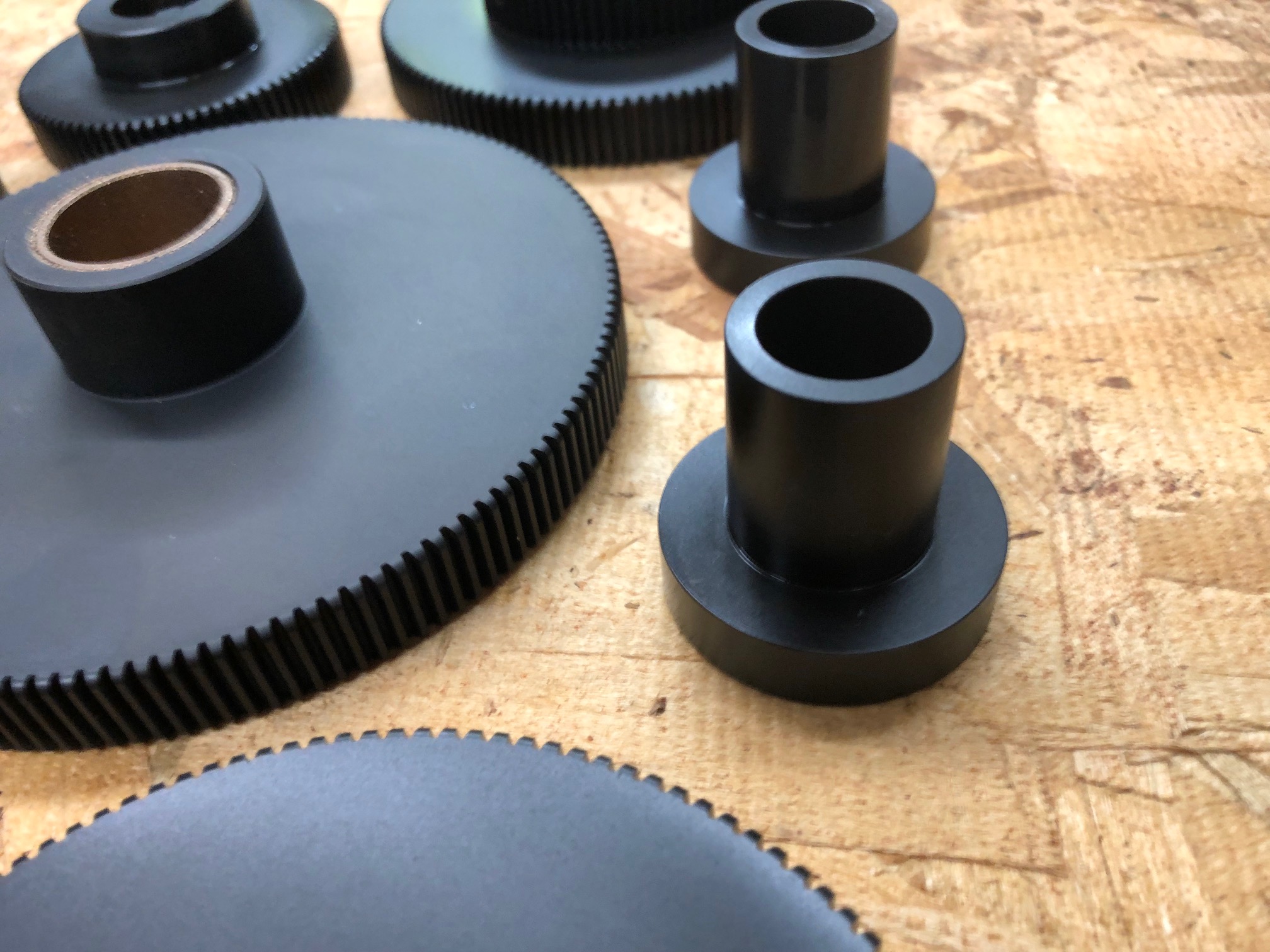

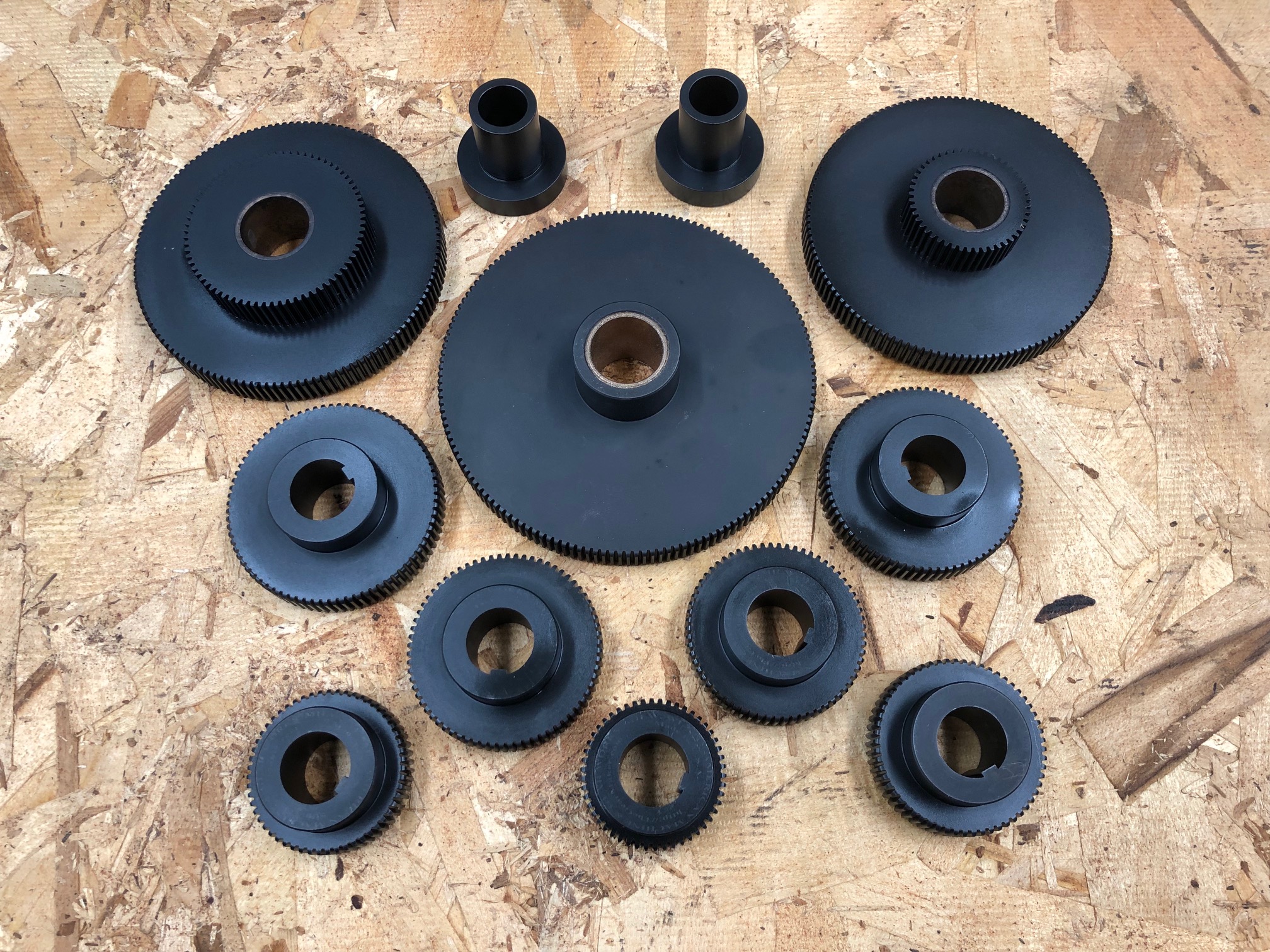

Gears included in the kit are 48T, 50T, 55T, 60T, 65T, 70T, 75T, 80T, 48T/127T Transposing Combination, 72T/127T Transposing Combination, & 151T idler. Also included are all bushings.

With this Metric Change Gear Kit you can cut all these Metric Thread Pitches – .25 mm, .3 mm, .35 mm, .4 mm, .45 mm, .5 mm, .55 mm, .6 mm, .65 mm, .7 mm, .75 mm, .8 mm, .85 mm, .9 mm, .95 mm, 1 mm, 1.1 mm,  1.2 mm, 1.25 mm, 1.3 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.75  mm, 2mm, 2.5 mm, 2.75 mm, 3 mm, 3.25 mm, 3.5 mm, 3.75 mm, & 4 mm.

5 in stock (can be backordered)

SKU: 10EE-RD-MCGK Category: Tags: , , , , , , , , , , , ,

Description

Monarch 10EE Round Dial Metric Change Gear Kit

American Machine & Gear Works is proud to offer kits to allow your Monarch 10EE Round Dial lathe to easily cut Metric threads. Our kits are manufactured with an eye for quality that meets or exceeds your needs. Featuring bores with integral keys and Gear Teeth Hobbed to exacting tolerances and specifications, our Gears are made from high quality Alloy Steel, and are Heat Treated and Tempered for long life and constant use by you, resulting in a high quality gear that will serve you well for decades.

We have also taken the extra step to Laser Etch our Monarch 10EE Gears with each one’s tooth count to make it easier for you to keep track of them.

If you need to cut Metric threads with your Round Dial Monarch 10EE, you need one of these kits.

Additional information

Weight 14 oz
Dimensions 12 × 12 × 8 in
